Equipment Status

SMD Line

Equipment Status
Hyesung Global is best company of the PCBA manufacturing.

SMD Line

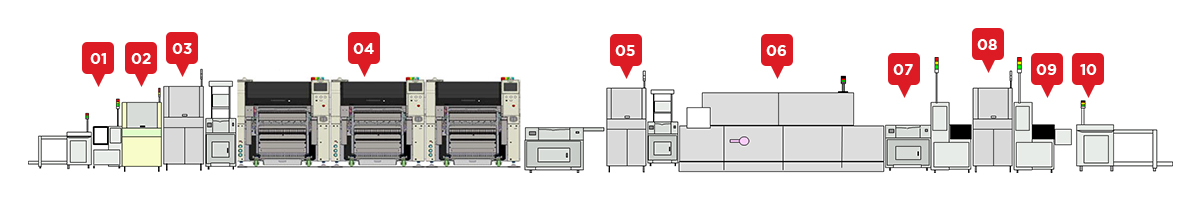

  • Equipment Status
  • SMD Line
  • 01

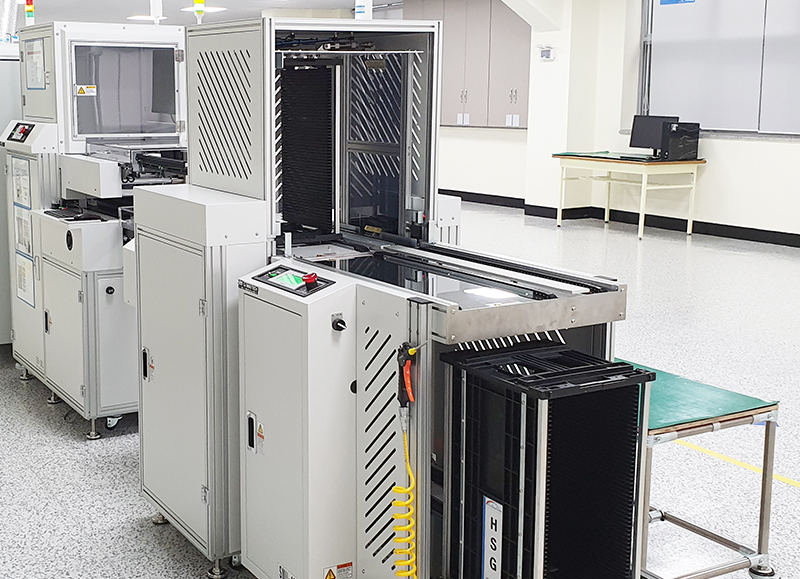

    LOADER

  • 02

    SCREEN PRINTER

  • 03

    SPI(3D)

  • 04

    CHIP MOUNTER

  • 05

    PRE AOI(3D)

  • 06

    N2 REFLOW(CTQ Process)

  • 07

    COOLING BUFFER

  • 08

    POST AOI(3D)

  • 09

    NG BUFFER

  • 10

    UNLOADER

  • 11

    IFMU(Panasonic Feeder Calibration Jig)

  • 12

    X-RAY

SMD Line Holding Facility

Click on the image of the facility to see the details.

SCREEN PRINTER

SCREEN PRINTER

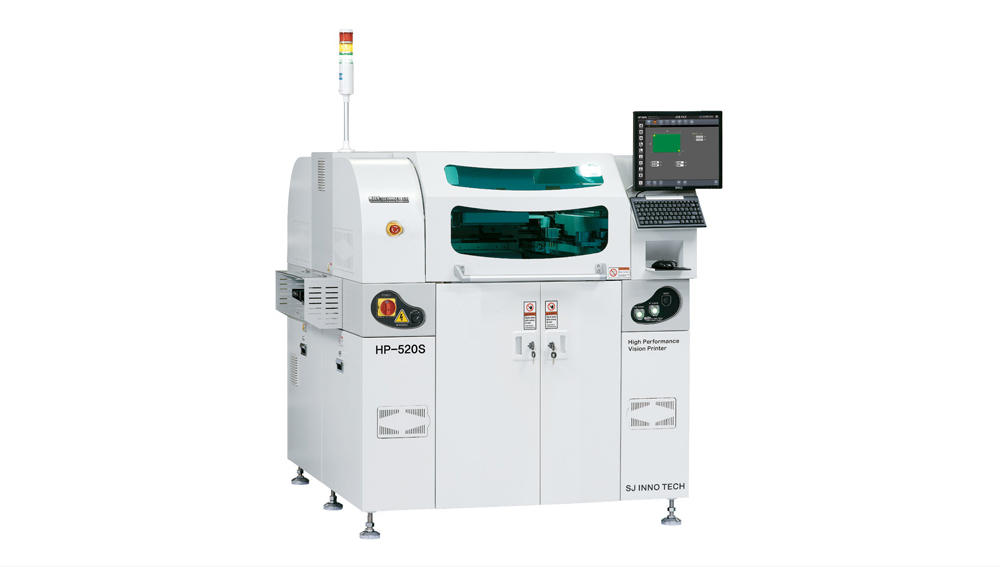

Manufacturer SJ - INNOTECH
Holding Model HP-680S / HP-520S
Possibility
  • 0402 Chip , 0.3 Pitch QFP Perfect Printing
  • Completion of Functional Test of Close-Loop Control (Screen Print ↔ SPI)
  • Traceability
  • Option : Auto Solder Dispenser, 2D Barcode Reading System, Temperature Control Unit

SPI

SPI

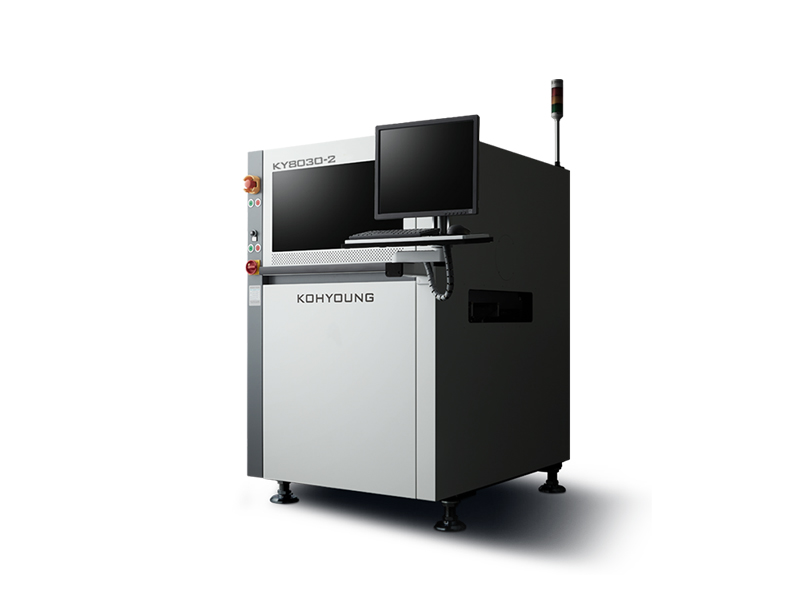

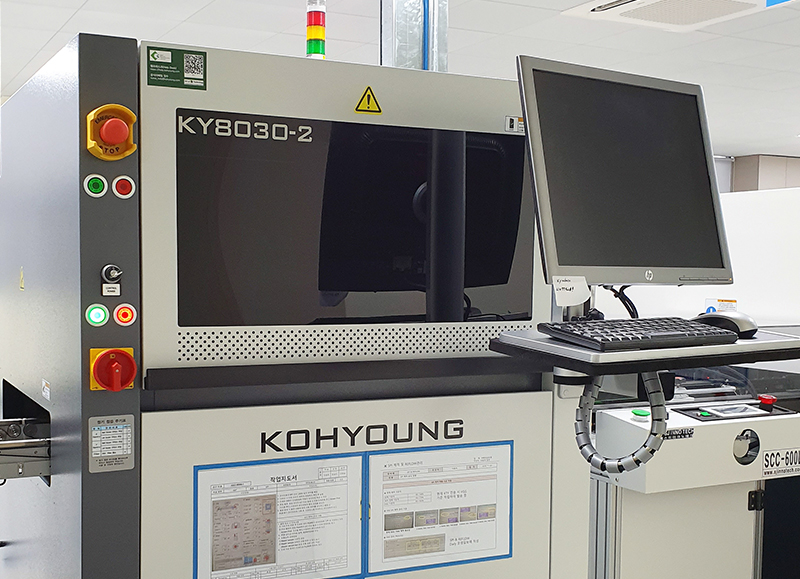

Manufacturer KOHYOUNG TECHNOLOGY
Holding Model KY-8030-2 XL , KY-8030-2L
Possibility
  • Real Image with ideal Shape : Visualization of Real Image
  • Close-Loop Control Functions (Screen Print ↔ SPI)
  • Tracking Product by recognizing the barcode
  • Application of K-SMART Solution

CHIP MOUNTER

CHIP MOUNTER

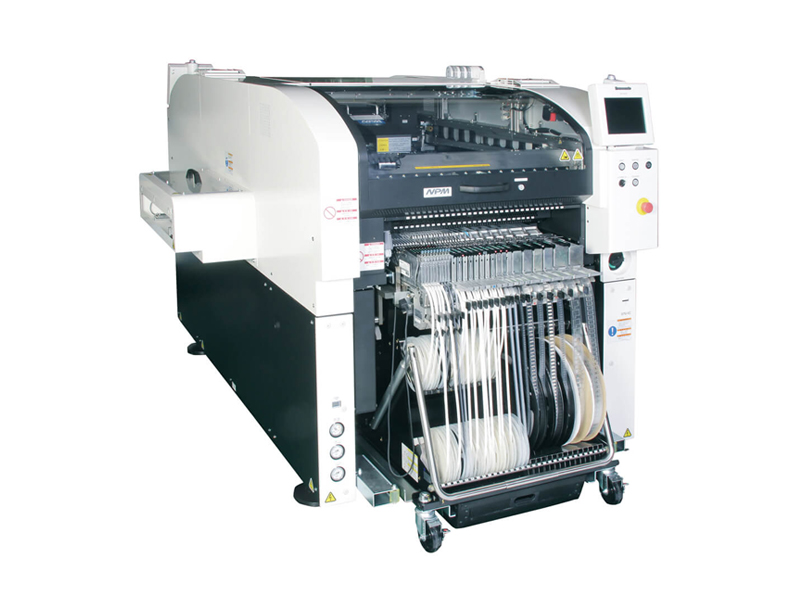

Manufacturer PANASONIC
Holding Model NPM W2 (3Module), CM602, CM402
Possibility
  • 0402 Minimum Chip
  • Polarity Test of Tray Components (Option)
  • Feeder Calibration Machine (Option)
  • Traceability & Components Combination System / Tracking Product by recognizing 1D and 2D Barcodes
  • LCR Meter Feeder (Option)
  • Nozzle Cleaner

AOI

AOI

Manufacturer KOHYOUNG TECHNOLOGY
Holding Model ZENITH (XL), ZENITH-Pre (L), ZENITH-Post (L)
Possibility
  • Solving Problems in Obstacles by using 8Way Projection
  • Measurement of Maximum Height of Parts (25mm)
  • K-SMART Solution (Real Time Quality Monitoring System)
    Library Manager
    SPC, RMS (Remote Management Server)
    OLP (Offline Program System)
  • Completion of Functional Test of Close-Loop Control (Screen Print ↔ SPI)

REFLOW

REFLOW

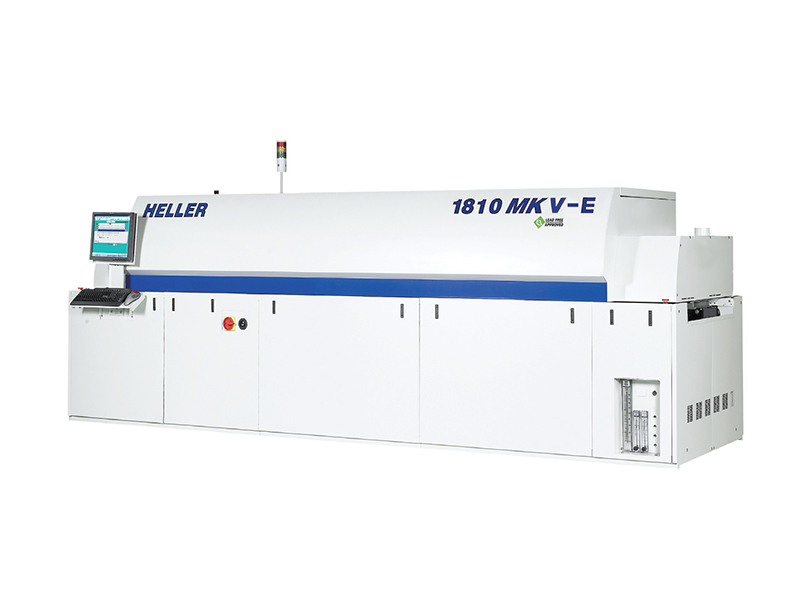

Manufacturer HELLER
Holding Model 1810MKV-E, 1913MKV-E
Possibility
  • Nitrogen Generator (combination of 18㎣ & 25㎣)
  • RTTPS (Real Time Temp Profile System)
    RTTMS (Real Time Temp Monitoring System)

COOLING RACK

COOLING RACK

Manufacturer SJ - INNOTECH
Possibility
  • PCB Temperature Measurement after Reflowing → 160℃
  • Temperature Measurement after passing Cooling Rack → 60℃
  • Stable AOI Test Due to Temperature Drop of PCB surface
